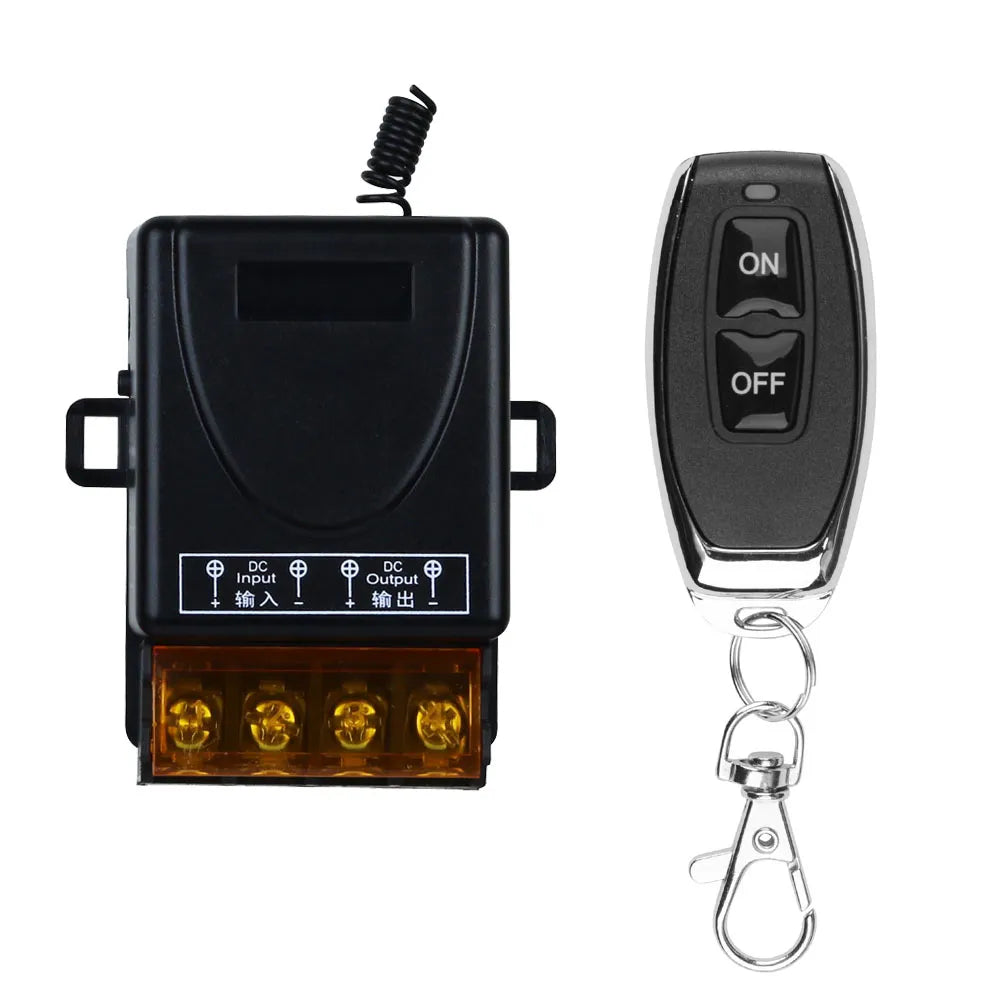

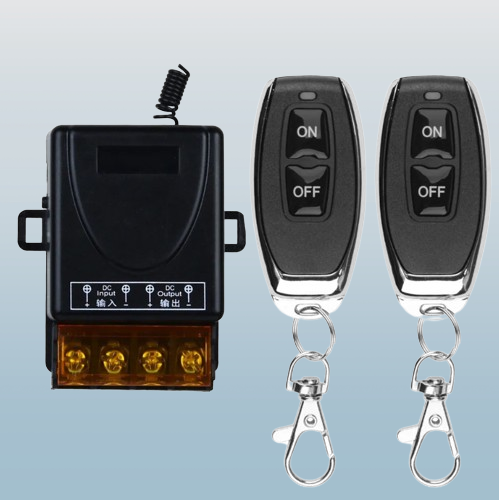

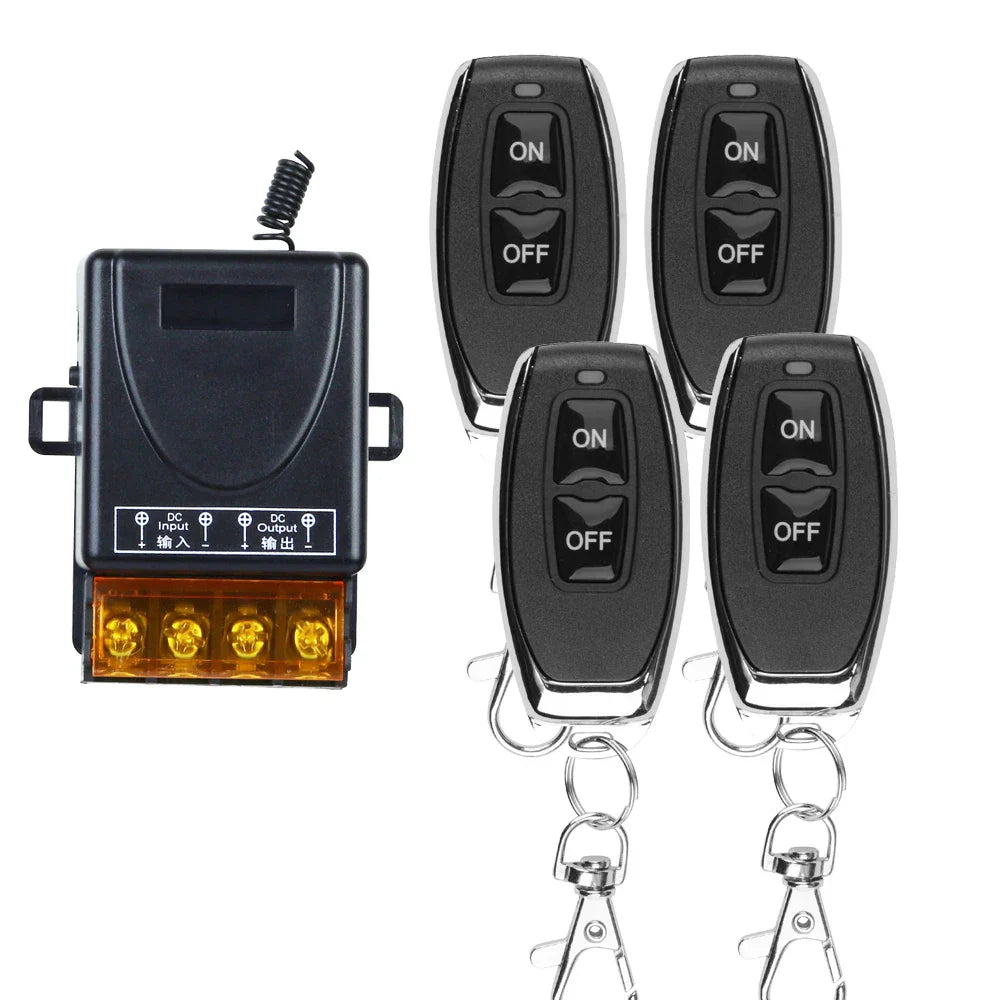

Wireless Remote Switch Control Module Receiver

Easy Learning and Clearing Method:
To get started, simply input 12V for the receiver. Then, follow these easy steps:

• Momentary: Press the Learning Button once, the LED indicator will flash once. Then, press the transmitter, and the LED indicator will flash three times, indicating successful learning.
• Toggle: Press the Learning Button twice, the LED indicator will flash twice. Then, press the transmitter, and the LED indicator will flash three times, indicating successful learning.
• Latched: Press the Learning Button three times, the LED indicator will flash three times. Then, press the transmitter, and the LED indicator will flash three times, indicating successful learning.
• Delay Time (5S): Press the Learning Button four times, the LED indicator will flash four times. Then, press the transmitter, and the LED indicator will flash three times, indicating successful learning.
• Delay Time (10S): Press the Learning Button five times, the LED indicator will flash five times. Then, press the transmitter, and the LED indicator will flash three times, indicating successful learning.
• Delay Time (15S): Press the Learning Button six times, the LED indicator will flash six times. Then, press the transmitter, and the LED indicator will flash three times, indicating successful learning.

To clear the code, simply press the Learning Button for 8 seconds, until the receiver LED indicator flashes three times and turns off.

SPECIFICATIONS

About the Receiver:

• Working Voltage: DC12V-72V
• Quiescent Condition: Less than 8mA
• Working Temperature: -40°C to 80°C
• Receiver Sensitivity: More than -105dBm
• Working Frequency: 433MHz
• Output Voltage: Input = Output
• Max Load Current: 30A
• Size: 105 x 51 x 30mm

About the Working Way:

• Momentary: Relay: Press and hold to turn on, release to turn off.
• Toggle: Relay: Press to turn on, press the same button again to turn off.
• Latched: Relay: Press to turn on, press another button to turn off.
• Delay Time: Press the remote control button, the corresponding relay actuates and keeps working until the time out.

Use this device for a variety of applications, including:

• Universal
• Lighting
• Electric Door
• SWITCH

Wireless Communication: RF

Support APP: No

Certification: CE, FCC, PSE

Frequency: 433 MHz

What's in the Box:

1 x Signal Receiver Wireless Remote Control Switch Relay
